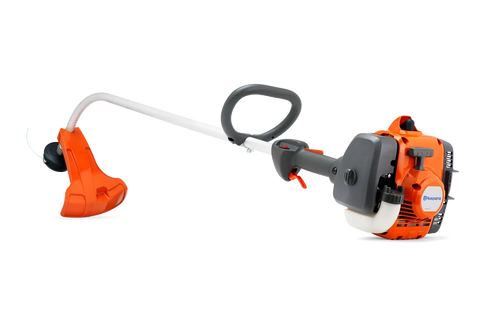

Husqvarna 122C String Trimmer

Husqvarna

UPC: 00024761017848

Options

Trimmer with curved shaft for smooth and easy grass trimming

Yard work is simple with the Husqvarna 122C. A variety of easy starting features, including Smart Start® technology, make this string trimmer easy and intuitive to use. Perfect for homeowners who need to trim around obstacles, this curved shaft trimmer features an ergonomic design and handle for easier, more comfortable use.

Features

Simple Starting

Stop switch automatically resets to ON so tool is ready for next use

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort

Ergonomic Design

Comfortable curved handle and shaft for easier use and increased maneuverability

High Line Capacity

Heavy duty twin line cutting system with Tap'n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.

Low Noise Engine

The engine design provides a low noise level and a more pleasant working environment.

Specifications

Capacity	22cc, Curved Shaft Trimmer SKU: 966 71 27‑01
Cutting width	17 in
Dimensions
Weight (excl. cutting equipment)	9.7 lbs
Product size length	59.4 in
Tube diameter	1 in
Product size height	14.8 in
Product size width	9.4 in
Tube length	54.37 in
Engine
Power output	0.8 hp
Cylinder displacement	1.3 cu.inch
Maximum rpm output shaft	10,000 rpm
Fuel tank volume	12.2 fl oz
Fuel tank volume	0.36 l
Clutch engagement speed (±120)	4,200 rpm
Electrode gap	0.02 in
Fuel consumption	630 g/kWh
Idling speed	2,900 rpm
Fuel consumption	0.79 lbs/h
Maximum power speed	7,800 rpm
Spark Plug	Husqvarna HQT-4 672201
Torque, max.	0.8 Nm
Torque, max. at rpm	6,000 rpm
Equipment
Gear ratio	1.1
Drive gear angle	0 °
Harness	Not included
Saw blade	Not included
Trimmer head	T25 (R)
Grass blade	Not included
Sound and noise
Sound power level, guaranteed (LWA)	104 dB(A)
Sound pressure level at operators ear	88 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle	5 m/s²
Equivalent vibration level (ahv, eq) rear handle	3.6 m/s²
Equivalent vibration level (ahv, eq) left handle	5 m/s²
Equivalent vibration level (ahv, eq) right handle	3.6 m/s²
Lubricant
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO average) CARB	254.87 g/kWh
Exhaust emissions (CO average) EPA	254.87 g/kWh
Exhaust emissions (CO average) EU	230.89 g/kWh
